Tooltip settings and formatting
- Overview
- Enabling/Disabling tooltips
- Formatting tooltip text
- Setting text margins
- Positioning tooltip
- Visual appearance settings
- Tooltip style
- Using multiple tooltips
- Keywords reference
Overview
The tooltip is a common graphical user interface element. It is used in conjunction with a mouse pointer. The user hovers the cursor over an item, without clicking it, and a small box appears with the name or description of the item being hovered over.
AnyChart allows to add tooltips to data elements. Tooltip has a lot of settings: visual appearance - like background and font, positioning settings and text formatting.
Enabling/Disabling tooltips
By default tooltips for all types of charts are disabled. You can enable tooltips for the given chart type (series type, actually), given series or point.

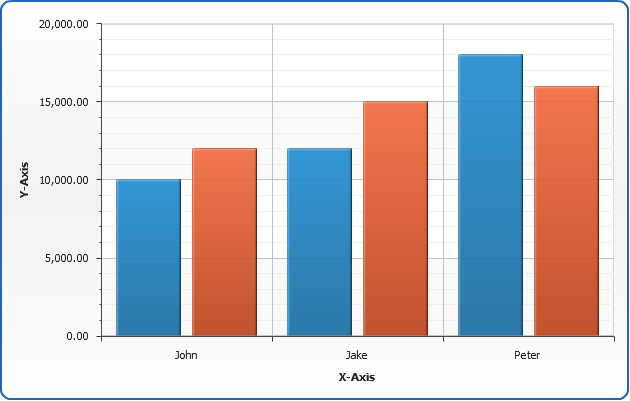

In the sample column chart below we will enable tooltips for all Bar charts:
Disabled tooltips for "Quarter 2" series:
Enabled and set the custom format for the last point in "Quarter 2" series:
Launch the live sample, move the mouse over the columns and see how these settings work.
Note:
Each series type has own settings for tooltips, so you should configure <tooltip_settings> in a proper node in <data_plot_settings>, for example: <bar_series> for Bar or Column charts, <line_series> for Line and Spline charts - and so on.
When you are configuring format or enabling tooltips for the given series or point (in <series><label>, <series><tooltip> or <point><label>, <point><tooltip>) - it will work on any series type.
If you want to use the same settings for different series types - consider creating of a tooltip style - this method is described below, in Tooltip style chapter of this article.
Formatting tooltip text
You can format tooltip text in any way you like, to make it useful and informative. Tooltip text formatting may be set for all series of a given chart type, given series or a certain point. Formatting is set in <format> or <tooltip> subnode.
To make text formatting easier AnyChart has a special mechanism called Keywords. Every keyword is a unique token that can be specified in <format> node in a following way: {%KeywordName}, for example {%Value} or {%YAxisName}. Before displaying text every keyword is replaced by a corresponding value.
There is a lot of keywords that can be used in tooltips, you can find a full reference of them in the end of this article.
The values supplied by keywords can be formatted with a special formatting postfixes like that {%Keyword}{param:value}, for example you can set {%Value}{numDecimals:2}, or specify several postfixes: {%Value}{numDecimals:2,thousandsSeparator:,,useNegativeSign;false}. All available number formatting parameters are listed and explained in Number formatting section.
Not only built-in keywords can be used, but you also can create your own custom attributes and attach them to data points, as described below in Custom attributes chapter of this article.

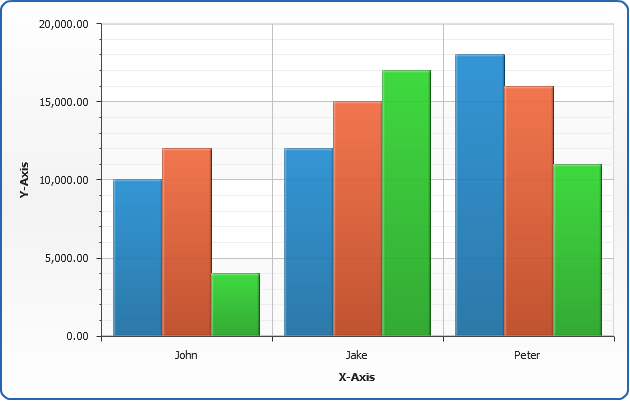

In the sample column chart below we will format tooltips for all Bar charts using keywords:
Tooltip texts for "Quarter 2" series will be set manually:
Enabled and set the custom format for the last point in "Quarter 2" series:
Launch the live sample, move the mouse over the columns and see how these settings work.
Custom attributes
Additional information stored in databases can be attached to data points and series and used in a chart to provide further information in a tooltip, an element's label or within a legend. This can make creation of tooltips and labels easier - once configured, they can easily be modified and you can concentrate only on data extraction.
Custom attributes are specified within <attributes> subnode of <series> or <point> nodes, each attribute has a unique name, which can be used (with a % prefix, in braces) as a keyword in tooltips text.
To attach custom attribute to a point the following syntax is used, when attribute value is a simple string with no special characters in it:
If you need to pass special characters use CDATA section within <attribute> node:
In the sample below we will attach the following info about sales managers to each point: phone, full name and blog url, as shown in the table:
Name | Sales | Full Name | Phone | Blog |
---|---|---|---|---|
John | $10.000 | John Maverick | 555-1267 | http://www.anychart.com/blog/ |
Jake | $12.000 | Jake Alexander Bow | 555-6790 | none |
Peter | $18.000 | Peter Pen | 555-0112 | http://www.anychart.com/blog/ |
XML for "Peter" point will look like:
Also, we can attach an attribute to the series:
When all attributes are attached we can create a tooltip, that uses them:

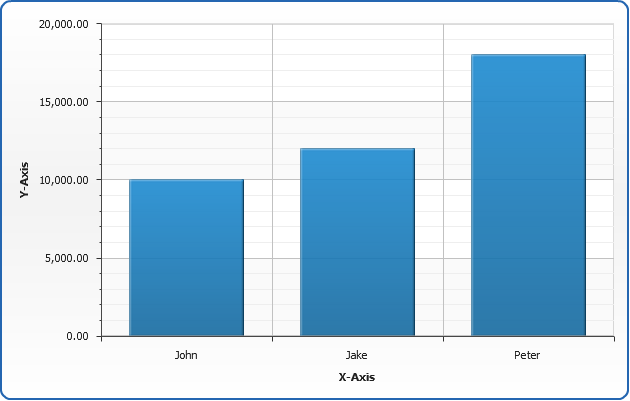

Now move the mouse over the column in live chart preview and see what tooltips were created:
Setting maximum of visible characters
If the value (a number or a text) is to large, you may want to limit the number of characters using maxChar keyword. This parameters sets the maximal number of symbols, that are displayed. For example if the length of the string in {%Token} is greater than maxChar, then it will be trimmed and symbols set in maxCharFinalChars (by default "...") are shown at the end (this is done to show explicitly, that string is trimmed). If the number of characters in {%Token} is less than or equal to maxChar, then {%Token} is displayed as is.
If you don't want to show anything when value is trimmed - just set maxCharFinalChars to nothing.
Sample setting maximum of visible characters to 5 and no final characters:
In the sample chart below we've used this settings.
Setting text margins
You can control text margins in tooltip using <inside_margin> subnode of tooltip settings <background> node, this can be configured in tooltip style or certain series tooltip settings. You can set identical margins for all sides using all attribute, or given margins using left, right, top and bottom attributes. If both all and one/several of the left, right, top or bottom are set - the last four override all value.
Picture below shows what are text margins, and XML - typical margin settings:

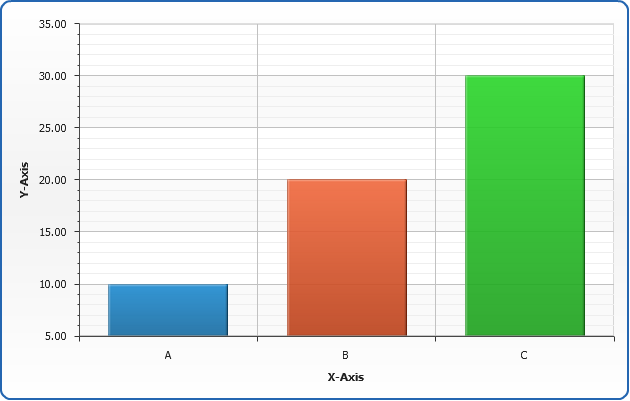

This is a sample chart with large left and right tooltip margins:
Positioning tooltip
You can define where tooltip will appear using <position> node, that can be configured for given chart type or certain tooltip style. <position> node have four attributes: anchor, halign, valign and padding:
Anchor attribute sets the point, to which tooltip is anchored and from which valign, halign and padding work.
Anchor value | Description |
---|---|
Float | Tooltip will appear and hover at the mouse cursor position. |
Center | Geometric center of the data point shape. |
CenterLeft | The center of the left side of the data point shape. |
LeftTop | The left corner of the upper side of the data point shape. |
CenterTop | The center of the upper side of the data point shape. |
RightTop | The right corner of the upper side of the data point shape. |
CenterRight | The center of the right side of the data point shape. |
RightBottom | The right corner of the bottom side of the data point shape. |
CenterBottom | The center of the bottom side of the data point shape. |
LeftBottom | The left corner of the bottom side of the data point shape. |
Attributes halign and valign define the alignments of tooltip relative to anchor point.
halign possible values are "Left", "Right" and "Center".
valign possible values are "Top", "Bottom" and "Center".
Padding is a numeric value that defines (in pixels) the shift of an anchor point. It can be positive and negative, positive padding moves anchor point to the right, and negative - to the left.

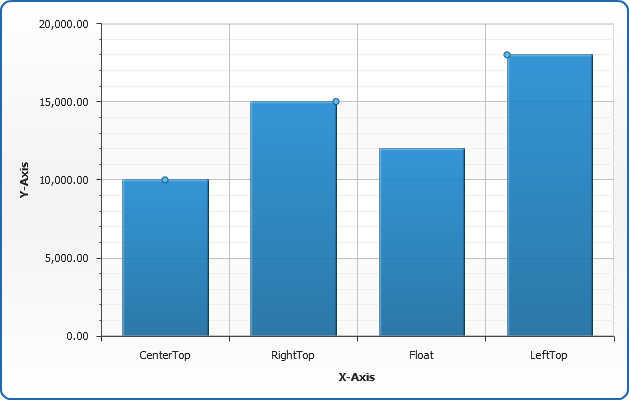

In the sample below we will show how different position settings affect the tooltip position.
We will create three tooltip styles (see more about styles below) and apply them to the different points.
This is a sample style that define tooltip position:
That's how tooltip style is applied to a point:
Visual appearance settings
You can tune visual appearance of tooltip using either given series settings and/or tooltip style. Tooltip visual settings consist of background settings (which include margins and border), font settings and effects.
You can learn more about these settings in: Background tutorial, Fonts tutorial and Effects tutorial.

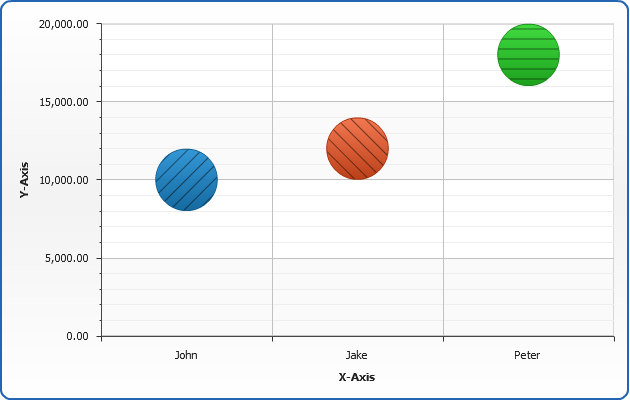

In the sample below tooltips are designed to look like standard Windows tooltips: yellow background, Courier font and thin black border.
Note: Don't forget that you always can turn of all settings, for example - if you want tooltips to have no background just set <background enabled="false"/>
Tooltip style
Tooltip style allows you to configure all visual, text and format settings in one place, and then use and re-use them in different series, points and chart styles. This is a very mighty mechanism, when it is used in a right way. Styles can be inherited, so it is very easy to create new style just modifying only setting that need to be modified and inherit already configured settings from the basic style.

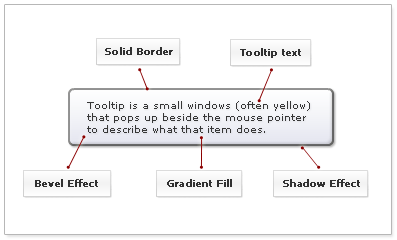

On the picture below all elements of tooltip style a marked-up and XML below highlights all elements settings:
The tooltips of this chart are configured using the style defined in XML above, we've tried to reproduce Vista style tooltip in it:
Style Inheritance
The next thing we will learn is style inheritance: we will create three new styles that will use the "Vista" style as a basic one, the only thing that will be modified is border color (to DarkRed , to Green and to Gold). The parent attribute of <tooltip_style> node defines that new style inherits all settings of a given "Vista" style.
Sample style that inherits "Vista" and changes the color of the border:

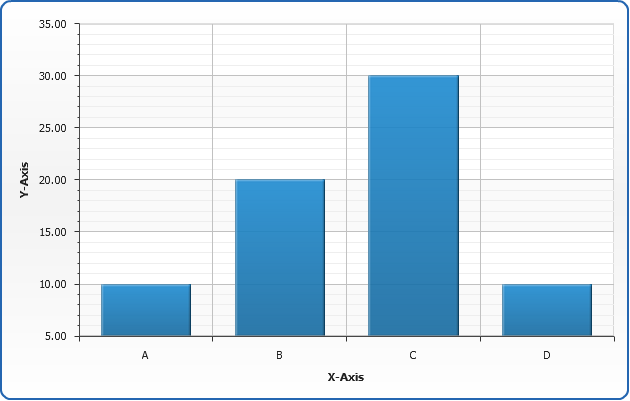

In the sample chart below the first column will use original "Vista" style and last three - modified styles:
Style Application
There are three ways to apply tooltip style: apply style to all charts of the given type, apply style to the certain series and to the certain point.
To apply style to all charts of the given type you should do that in a proper series settings node in <data_plot_settings> node, here is an example of bar charts series settings (the same can be accomplished in <area_series>, <line_series> and so on):
To apply tooltip style to the certain series you should do that in <tooltip> subnode of <series> node (no matter what type of series is set):
To apply tooltip style to the certain point you should do that in <tooltip> subnode of <point> node:
Using multiple tooltips
In AnyChart you can set more than one tooltip for any object, such as series type, specific series or point. It can be done through specification of a <extra_tooltips> node. This node can be used in every place, where <tooltip_settings> node can be used. This node contains <tooltip> subnodes that have just the same syntax as <tooltip_settings> does.
Let's add two extra tooltip to a series named "Quarter 2" of a chart from the beginning of our tutorial. Here is an extra tooltips xml:
And here is a live sample of how it works:
Keywords reference
In the tables below you can find all built-in keywords that can be used in tooltip texts, in Description column you an find notices that identify in what chart types keyword will be active. If a certain attribute value stands behind keyword - you will find thin attribute in Attribute column.
Point keywords
This table list all built-in keywords that provide point data and point-related precalculated values.
Keyword | Description | Attribute |
---|---|---|
{%Value} = {%YValue} | The y value of this point. | <point y=""/> |
{%YValue} | The y value of this point. | <point y=""/> |
{%YPercentOfCategory} | The percentage of all the points with the same name this point represents. | |
{%YPercentOfSeries} | The percentage of the series this point represents. | |
{%YPercentOfTotal} | The percentage of all the series on the chart this point represents. | |
{%High} | The high value of this point (OHLC, Candlestick). | <point high=""/> |
{%Low} | The low value of this point (OHLC, Candlestick). | <point low=""/> |
{%Open} | The open value of this point (OHLC, Candlestick). | <point open=""/> |
{%Close} | The close value of this point (OHLC, Candlestick). | <point close=""/> |
{%XValue} | The x value of this point (Scatter Plot charts). | <point x=""/> |
{%XPercentOfSeries} | The percentage of the series this point represents (Scatter Plot charts). | |
{%XPercentOfTotal} | The percentage of all the series on the chart this point represents. | |
{%BubbleSize} | The bubble size value of this point (Bubble chart). | <point size=""/> |
{%BubbleSizePercentOfCategory} | The percentage of all the points with the same name this point represents (Categorized charts). | |
{%BubbleSizePercentOfSeries} | The percentage of the series this point represents. | |
{%BubbleSizePercentOfTotal} | The percentage of all the series on the chart this point represents. | |
{%Name} | The name of this point. | <point name=""/> |
{%Index} | The index of this point in the series this point represents (zero-based). | |
{%RangeStart} | The starting value of this point (Range charts). | <point start=""/> |
{%RangeEnd} | The ending value of this point (Range charts). | <point end=""/> |
{%Range} | The range of this point (RangeEnd - RangeStart). |
Series keywords
This table list all built-in keywords that provide series data and series-related precalculated values.
Keyword | Description | Attribute |
---|---|---|
{%SeriesName} | The name of this series. | <series name=""/> |
{%SeriesFirstXValue} | The x value of the first point in this series (Scatter plot charts). | |
{%SeriesFirstYValue} | The y value of the first point in this series. | |
{%SeriesLastXValue} | The x value of the last point in this series (Scatter plot charts). | |
{%SeriesLastYValue} | The y value of the first point in this series. | |
{%SeriesYSum} | The sum of all the points y values. | |
{%SeriesXSum} | The sum of all the points x values (Scatter plot charts). | |
{%SeriesBubbleSizeSum} | The sum of all the points bubble sizes (Bubble chart). | |
{%SeriesYMax} | The maximal y value of all the elements within this series. | |
{%SeriesYMin} | The minimal y value of all the elements within this series. | |
{%SeriesXMax} | The maximal x value of all the elements within this series (Scatter plot charts). | |
{%SeriesXMin} | The minimal x value of all the elements within this series (Scatter plot charts). | |
{%SeriesBubbleMaxSize} | The maximal bubble size value of all the points within this series (Bubble chart). | |
{%SeriesBubbleMinSize} | The minimal bubble size value of all the points within this series (Bubble chart). | |
{%SeriesYAverage} | The average y value of all the points within this series. | |
{%SeriesXAverage} | The average x value of all the points within this series. | |
{%SeriesBubbleSizeAverage} | The average bubble size value of all the points within this series (Bubble chart). | |
{%SeriesYMedian} | The median y value of all the points within this series. | |
{%SeriesXMedian} | The median x value of all the points within this series (Scatter plot charts). | |
{%SeriesBubbleSizeMedian} | The median bubble size value of all the points within this series (Bubble chart). | |
{%SeriesYMode} | The mode y value of all the points within this series. | |
{%SeriesXMode} | The mode x value of all the points within this series (Scatter plot charts). | |
{%SeriesBubbleSizeMode} | The mode bubble size value of all the points within this series (Bubble chart). | |
{%SeriesPointCount} | The number of points in this series. | |
{%SeriesYAxisName} | The title text of the Y Axis. | |
{%SeriesXAxisName} | The title text of the X Axis. | |
{%SeriesYRangeMax} | The maximal range in this series (Range charts). | |
{%SeriesYRangeMin} | The minimal range in this series (Range charts). | |
{%SeriesYRangeSum} | The sum of all ranges in this series (Range charts). |
Category
This table list all built-in keywords that provide category data and category-related precalculated values.
When creating categorized charts category is a set of points within the chart with the same name.
Keyword | Description |
---|---|
{%CategoryYPercentOfTotal} | The percent of all the data on the chart this category represents. |
{%CategoryYSum} | The sum of all the points within this category. |
{%CategoryYAverage} | The average of all the points within this category. |
{%CategoryYMedian} | The median of all the points within this category. |
{%CategoryYMode} | The mode of all the points within this category. |
{%CategoryName} | The name of the category. |
{%CategoryYRangeMax} | The maximal range in this category (Range charts). |
{%CategoryYRangeMin} | The minimal range in this category (Range charts). |
{%CategoryYRangeSum} | The sum of all ranges in this category (Range charts). |
Data Plot
This table list all built-in keywords that provide category data and category-related precalculated values.
Keyword | Description |
---|---|
{%DataPlotYSum} | The sum of all the points y values. |
{%DataPlotXSum} | The sum of all the points x values (Scatter plot charts). |
{%DataPlotBubbleSizeSum} | The sum of all the points bubble sizes (Bubble chart). |
{%DataPlotYMax} | The maximal of all the points y values. |
{%DataPlotYMin} | The minimal of all the points y values. |
{%DataPlotXMax} | The maximal of all the points x values (Scatter plot chart). |
{%DataPlotXMin} | The minimal of all the points x values (Scatter plot chart). |
{%DataPlotBubbleMaxSize} | The maximal of all the points bubble sizes (Bubble chart). |
{%DataPlotBubbleMinSize} | The minimal of all the points bubble sizes (Bubble chart). |
{%DataPlotXAverage} | The average x value of all the points (Scatter plot charts). |
{%DataPlotYAverage} | The average y value of all the points. |
{%DataPlotBubbleSizeAverage} | The average bubble size of all the points (Scatter plot charts). |
{%DataPlotMaxYValuePointName} | The name of the point with a maximal of all the points y values. |
{%DataPlotMinYValuePointName} | The name of the point with a minimal of all the points y values. |
{%DataPlotMaxYValuePointSeriesName} | The name of the series with a maximal of all the points y values. |
{%DataPlotMinYValuePointSeriesName} | The name of the series with a minimal of all the points y values. |
{%DataPlotMaxYSumSeriesName} | The name of the series with a maximal sum of the points y values. |
{%DataPlotMinYSumSeriesName} | The name of the series with a minimal sum of the points y values. |
{%DataPlotYRangeMax} | The maximal of the ranges of the points within the chart. |
{%DataPlotYRangeMin} | The minimal of the ranges of the points within the chart. |
{%DataPlotYRangeSum} | The sum of the ranges of the points within the chart. |
{%DataPlotPointCount} | The number of the points within the chart. |
{%DataPlotSeriesCount} | The number of the series within the chart. |
Y Axis
This table list all built-in keywords that provide Y axis data and y axis-related precalculated values.
Keyword | Description |
---|---|
{%YAxisSum} | The sum of all y values of all points in series that are bound to this axis. |
{%YAxisBubbleSizeSum} | The sum of all bubble sizes of all points in series that are bound to this axis. |
{%YAxisMax} | The maximal y value of all points in series that are bound to this axis. |
{%YAxisMin} | The minimal y value of all points in series that are bound to this axis. |
{%YAxisScaleMax} | The maximal scale value. |
{%YAxisScaleMin} | The minimal scale value. |
{%YAxisBubbleSizeMax} | The maximal bubble size of all points in series that are bound to this axis. |
{%YAxisBubbleSizeMin} | The minimal bubble size of all points in series that are bound to this axis. |
{%YAxisAverage} | The average y value of all points in series that are bound to this axis. |
{%YAxisMedian} | The median y value of all points in series that are bound to this axis. |
{%YAxisMode} | The mode y value of all points in series that are bound to this axis. |
{%YAxisName} | The name of the axis. |
X Axis
This table list all built-in keywords that provide X axis data and x axis-related precalculated values. Only for Scatter plot charts.
Keyword | Description |
---|---|
{%XAxisSum} | The sum of all x values of all points in series. |
{%XAxisBubbleSizeSum} | The sum of all bubble sizes of all points in series. |
{%XAxisMax} | The maximal x value of all points in series. |
{%XAxisMin} | The minimal x value of all points in series. |
{%XAxisScaleMax} | The maximal scale value. |
{%XAxisScaleMin} | The minimal scale value. |
{%XAxisBubbleSizeMax} | The maximal bubble size of all points in series. |
{%XAxisBubbleSizeMin} | The minimal bubble size of all points in series. |
{%XAxisAverage} | The average x value of all points in series. |
{%XAxisMedian} | The median x value of all points in series. |
{%XAxisMode} | The mode x value of all points in series. |
{%XAxisName} | The name of the axis. |
