Vertical Gauge Labels Configuration

• Overview
• Labels Parameters
• Enabling/Disabling labels
• Positioning labels
• Formatting labels
• Showing first and last labels

Overview

Axis Labels are labels that are drawn near major tickmarks. You can adjust their font size, font color, a wide range of other attributes and define their font family. Also you may choose from what side should the labels be displayed (align) and how far they should stand from the tickmarks (padding).

Typical XML settings for the labels are:

Labels Parameters

The following attributes can be set for labels:

Attribute	Values	Default	Description
enabled	true | false	false	Sets whether labels are enabled or not
show_first	true | false	True	Whether the label of first tickmark is shown
show_last	true | false	True	Whether the label of last tickmark is shown
padding	Number	Auto	The padding of labels
align	Inside | Outside | Center	Center	Sets the position of labels
text_align	Near | Center | Far	Center	Defines the distance between gauge and label text
rotation	Number	0	Sets the angle of label's rotation

Enabling/Disabling labels

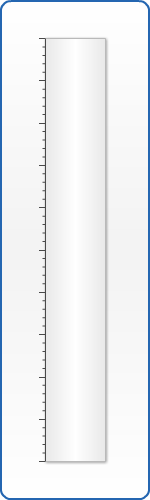

By default labels are enabled, but you can disable them this way:

The result is as follows:

Positioning Labels

There are four nodes responsible for text positioning. They are: align, text_align, padding and rotation. Let's look at some samples demonstrating the practical usage of these nodes.

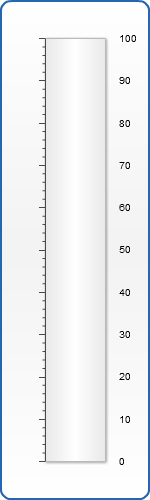

In this sample we will use align and padding attributes. Align attribute has three states: "Inside", "Outside" and "Center". In case of Vertical Linear Gauges "Inside" means position of labels to the left from the scale, "Center" - inside the scale and "Outside" - to the right from the scale. Padding attribute is set in percents and defines how far from the scale we move the text. Padding can be represented in positive or negative values, which affects the direction of text's movement. For "Center" and "Outside" states of align attribute positive values move the label to the right, and negative - to the left. For the "Inside" state positive - left, negative - right. Let's imagine we want to create a gauge with labels standing to the right from the scale and that some distance should separate them. We use the following settings:

The result is as follows:

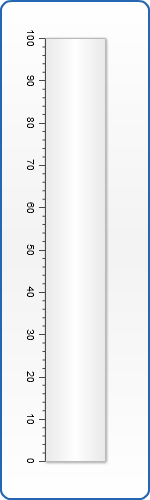

The rotation attribute affects on the text rotation angle and is set in degrees:

So, we rotate our labels 90 degrees CCW:

Formatting Labels

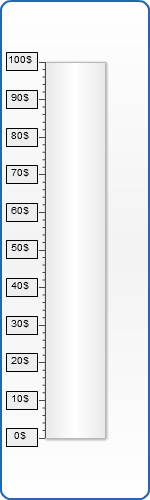

The labels can be formatted using subnodes of label node: Font, Format and Background. Let's change the label format: add a postfix "$", make label bold, set number of decimal signs after zero to 2, change label's opacity, color label's background in yellow and the label itself - in red:



Showing first and last Labels

You can choose whether to show first/last label value or not. This is done in a simple way, by setting true or false to show_first/show_last attribute:

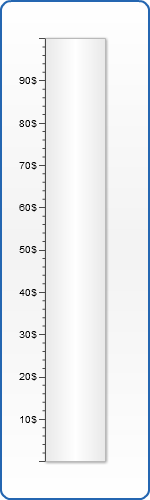

In this example we have disabled showing both first and last labels:
