Horizontal Gauge Labels Configuration

• Overview
• Labels Parameters
• Enabling/Disabling labels
• Positioning labels
• Formatting labels
• Showing first and last labels
• Rotating labels along the Scale

Overview

Axis Labels are labels that are drawn near major tickmarks. You can adjust their font size, font color, a wide range of other attributes and define their font family. Also you may choose from what side should the labels be displayed (align) and how far they should stand from the tickmarks (padding). It's your desire to decide whether labels will be rotated along the scale and define this rotation.

Typical XML settings for the labels are:

Labels Parameters

The following attributes can be set for labels:

Attribute	Values	Default	Description
enabled	true | false	false	Sets whether labels are enabled or not
show_first	true | false	True	Whether the label of first tickmark is shown
rotate_circular	true | false	False	Defines whether labels are rotated along the scale.
auto_orientation	true | false	True	Determines whether labels can be rotated more than 90 degrees (or, in other words, whether they can be displayed upside down).
show_last	true | false	True	Whether the label of last tickmark is shown
padding	Number	Auto	The padding of labels
align	Inside | Outside | Center	Center	Sets the position of labels
text_align	Near | Center | Far	Center	Defines the distance between gauge and label text
rotation	Number	0	Sets the angle of label's rotation

Enabling/Disabling labels

By default labels are enabled, but you can disable them this way:

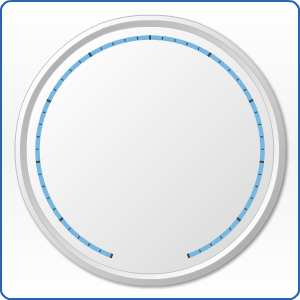

The result is as follows:

Positioning Labels

There are four nodes responsible for text positioning. They are: align, text_align, padding and rotation. Let's look at some samples demonstrating the practical usage of these nodes.

In this sample we will use align and padding attributes. Align attribute has three states: "Inside", "Outside" and "Center". Padding attribute is set in percents and defines how far from the scale we move the text. Padding can be represented in positive or negative values, which affects the direction of text's movement. Let's use the following settings for labels:

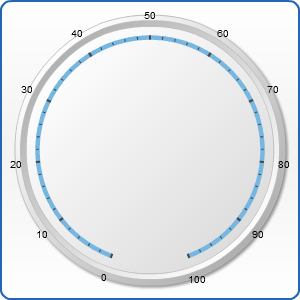

The result is as follows:

The rotation attribute affects on the text rotation angle and is set in degrees:

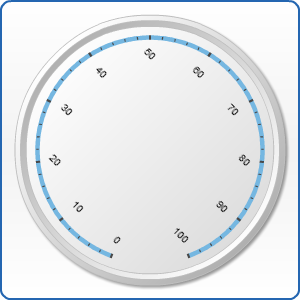

So, we rotate our labels 45 degrees CCW:

Formatting Labels

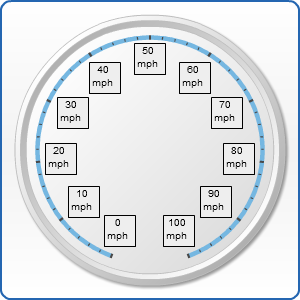

The labels can be formatted using subnodes of label node: Font, Format and Background. Let's change the label format: add a postfix "mph" and add label background:



Showing first and last Labels

You can choose whether to show first/last label value or not. This is done in a simple way, by setting true or false to show_first/show_last attribute:

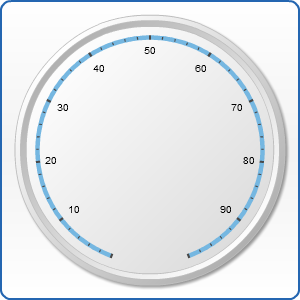

In this example we have disabled showing both first and last labels:

Rotating labels along the Scale

You can decide whether your labels will be rotated along the axis scale. auto_orientation attribute is responsible for it. By default it is off. Let's turn it on. We also enable auto_orientation to prevent labels to be shown upside down when they indicate values that are set to more than 180 degrees.

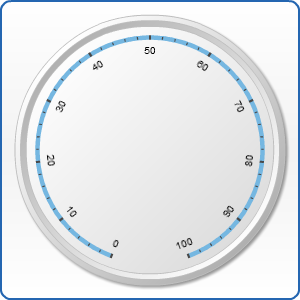

That's what we get:
