AnyChart Stock XML Validator
- Overview
- Well-Formed and Valid XML
- Mismatched Tag in XML Config
- Mismatched Attribute Value in XML Config
Overview
AnyChart Stock Online XML Validator is a tool for checking the well-formedness and validity of an XML config. You can check your config files using the following page:
The Online Validator checks strictly markup and it's compliance with the specification and schema.
Well-Formed and Valid XML

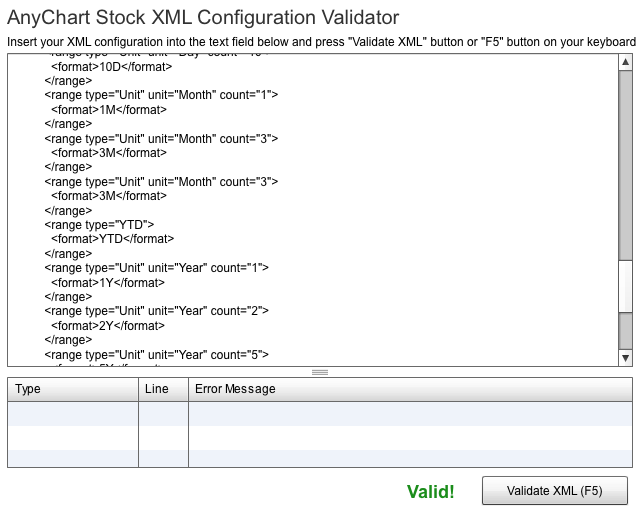

If the XML config validation is passed successfully, the validator shows the "Valid!" message under the textarea, as presented on the screenshot below:
Mismatched Tag in XML Config

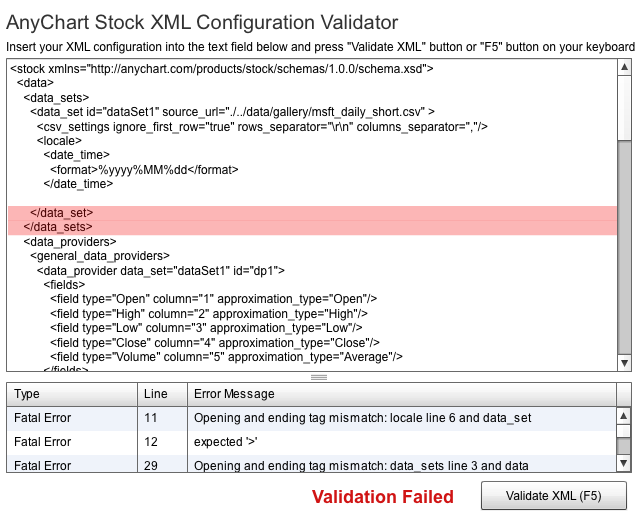

When some of the tags are mismatched, the validator tool indicates the string where the error occurred and comments it. On the screenshot below, you can see what happens when some elements are switched over:
Mismatched Attribute Value in XML Config

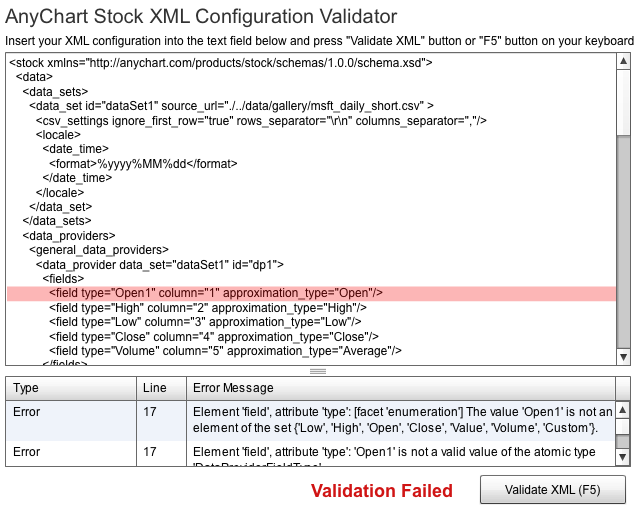

The validator tool also checks the attributes and their contents, as demonstrated on the following screenshot:
