Axes Positioning and Inverting Templates

• Overview
• CategorizedVertical, CategorizedBySeriesVertical and Scatter
• CategorizedHorizontal, CategorizedBySeriesHorizontal

Overview

Positioning depends on plot type and inversion of axes, below you will find all possible Axes Positioning and Inverting XML Settings with demonstration preview.

Though these settings are demonstrated using Bar/Column charts - they work for all other chart types.

CategorizedVertical, CategorizedBySeriesVertical and Scatter

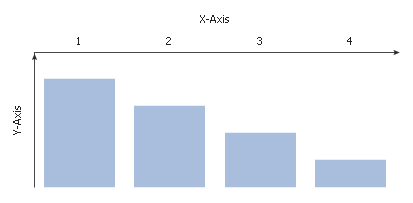

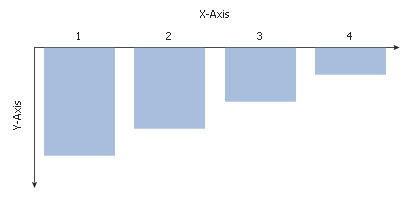

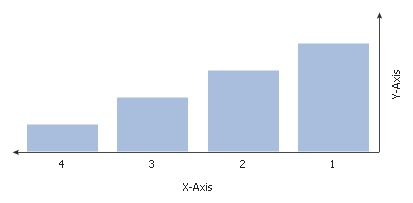

When <chart plot_type=""> is set to "CategorizedVertical", "CategorizedBySeriesVertical" or "Scatter" positioning and inverting settings work as shown in samples below:

Preview	XML Settings

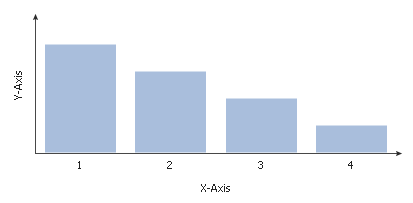

	XML Syntax XML Code 01 <axes> 02   <y_axis position="Normal"> 03     <scale inverted="False" /> 04   </y_axis> 05   <x_axis position="Normal"> 06     <scale inverted="False" /> 07   </x_axis> 08 </axes> <axes> <y_axis position="Normal"> <scale inverted="False" /> </y_axis> <x_axis position="Normal"> <scale inverted="False" /> </x_axis> </axes>

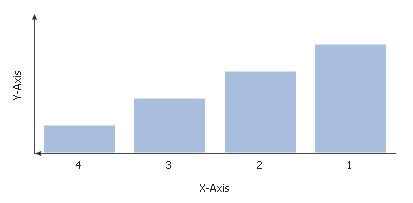

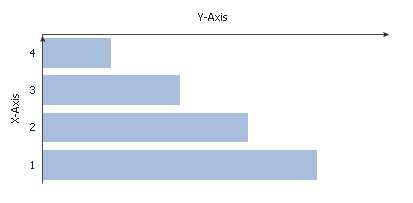

	XML Syntax XML Code 01 <axes> 02   <y_axis position="Normal"> 03     <scale inverted="False" /> 04   </y_axis> 05   <x_axis position="Normal"> 06     <scale inverted="True" /> 07   </x_axis> 08 </axes> <axes> <y_axis position="Normal"> <scale inverted="False" /> </y_axis> <x_axis position="Normal"> <scale inverted="True" /> </x_axis> </axes>
	XML Syntax XML Code 01 <axes> 02   <y_axis position="Normal"> 03     <scale inverted="False" /> 04   </y_axis> 05   <x_axis position="Opposite"> 06     <scale inverted="False" /> 07   </x_axis> 08 </axes> <axes> <y_axis position="Normal"> <scale inverted="False" /> </y_axis> <x_axis position="Opposite"> <scale inverted="False" /> </x_axis> </axes>

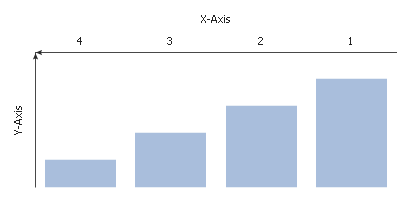

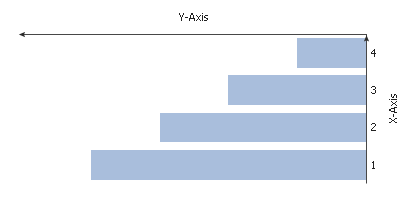

	XML Syntax XML Code 01 <axes> 02   <y_axis position="Normal"> 03     <scale inverted="False" /> 04   </y_axis> 05   <x_axis position="Opposite"> 06     <scale inverted="True" /> 07   </x_axis> 08 </axes> <axes> <y_axis position="Normal"> <scale inverted="False" /> </y_axis> <x_axis position="Opposite"> <scale inverted="True" /> </x_axis> </axes>

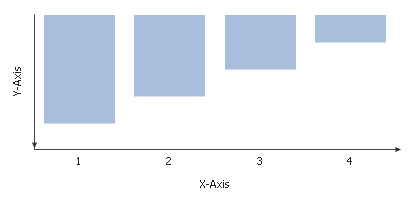

	XML Syntax XML Code 01 <axes> 02   <y_axis position="Normal"> 03     <scale inverted="True" /> 04   </y_axis> 05   <x_axis position="Normal"> 06     <scale inverted="False" /> 07   </x_axis> 08 </axes> <axes> <y_axis position="Normal"> <scale inverted="True" /> </y_axis> <x_axis position="Normal"> <scale inverted="False" /> </x_axis> </axes>

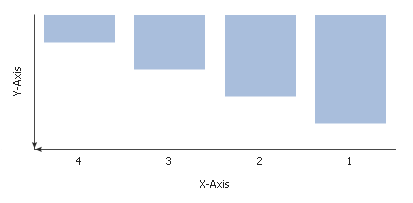

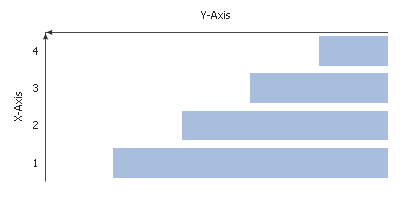

	XML Syntax XML Code 01 <axes> 02   <y_axis position="Normal"> 03     <scale inverted="True" /> 04   </y_axis> 05   <x_axis position="Normal"> 06     <scale inverted="True" /> 07   </x_axis> 08 </axes> <axes> <y_axis position="Normal"> <scale inverted="True" /> </y_axis> <x_axis position="Normal"> <scale inverted="True" /> </x_axis> </axes>

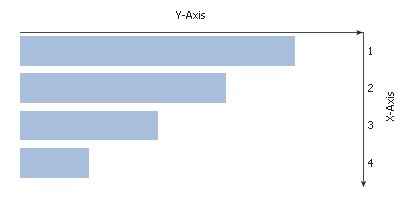

	XML Syntax XML Code 01 <axes> 02   <y_axis position="Normal"> 03     <scale inverted="True" /> 04   </y_axis> 05   <x_axis position="Opposite"> 06     <scale inverted="False" /> 07   </x_axis> 08 </axes> <axes> <y_axis position="Normal"> <scale inverted="True" /> </y_axis> <x_axis position="Opposite"> <scale inverted="False" /> </x_axis> </axes>

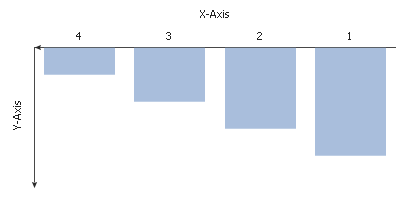

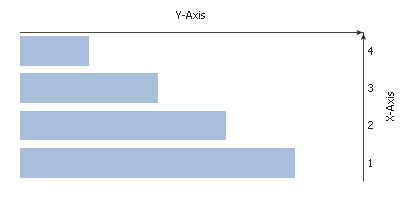

	XML Syntax XML Code 01 <axes> 02   <y_axis position="Normal"> 03     <scale inverted="True" /> 04   </y_axis> 05   <x_axis position="Opposite"> 06     <scale inverted="True" /> 07   </x_axis> 08 </axes> <axes> <y_axis position="Normal"> <scale inverted="True" /> </y_axis> <x_axis position="Opposite"> <scale inverted="True" /> </x_axis> </axes>

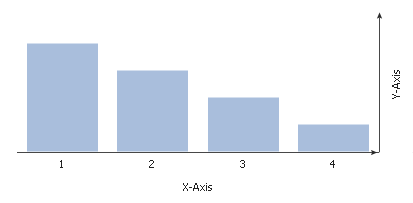

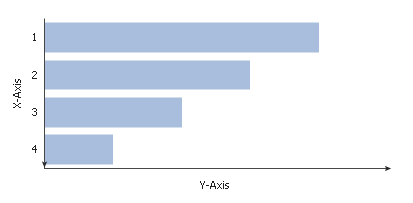

	XML Syntax XML Code 01 <axes> 02   <y_axis position="Opposite"> 03     <scale inverted="False" /> 04   </y_axis> 05   <x_axis position="Normal"> 06     <scale inverted="False" /> 07   </x_axis> 08 </axes> <axes> <y_axis position="Opposite"> <scale inverted="False" /> </y_axis> <x_axis position="Normal"> <scale inverted="False" /> </x_axis> </axes>

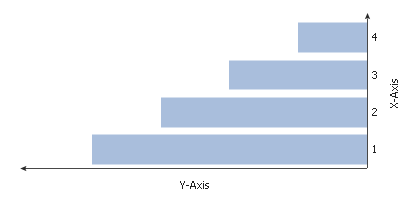

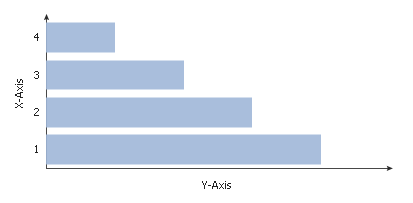

	XML Syntax XML Code 01 <axes> 02   <y_axis position="Opposite"> 03     <scale inverted="False" /> 04   </y_axis> 05   <x_axis position="Normal"> 06     <scale inverted="True" /> 07   </x_axis> 08 </axes> <axes> <y_axis position="Opposite"> <scale inverted="False" /> </y_axis> <x_axis position="Normal"> <scale inverted="True" /> </x_axis> </axes>

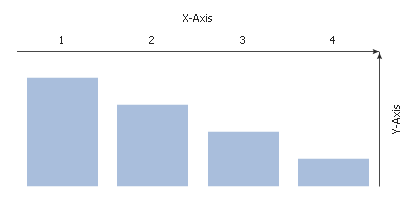

	XML Syntax XML Code 01 <axes> 02   <y_axis position="Opposite"> 03     <scale inverted="False" /> 04   </y_axis> 05   <x_axis position="Opposite"> 06     <scale inverted="False" /> 07   </x_axis> 08 </axes> <axes> <y_axis position="Opposite"> <scale inverted="False" /> </y_axis> <x_axis position="Opposite"> <scale inverted="False" /> </x_axis> </axes>

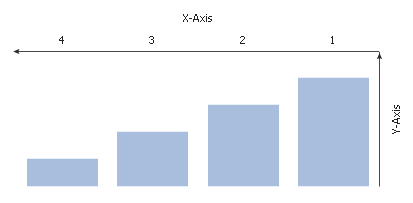

	XML Syntax XML Code 01 <axes> 02   <y_axis position="Opposite"> 03     <scale inverted="False" /> 04   </y_axis> 05   <x_axis position="Opposite"> 06     <scale inverted="True" /> 07   </x_axis> 08 </axes> <axes> <y_axis position="Opposite"> <scale inverted="False" /> </y_axis> <x_axis position="Opposite"> <scale inverted="True" /> </x_axis> </axes>

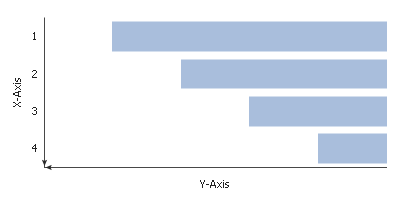

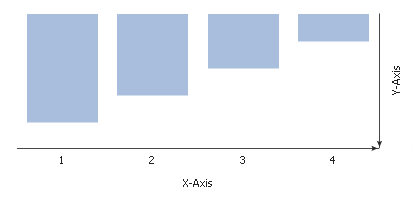

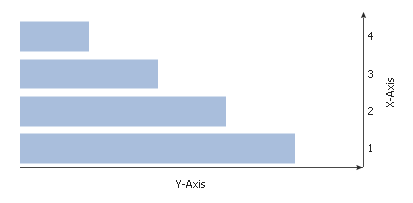

	XML Syntax XML Code 01 <axes> 02   <y_axis position="Opposite"> 03     <scale inverted="True" /> 04   </y_axis> 05   <x_axis position="Normal"> 06     <scale inverted="False" /> 07   </x_axis> 08 </axes> <axes> <y_axis position="Opposite"> <scale inverted="True" /> </y_axis> <x_axis position="Normal"> <scale inverted="False" /> </x_axis> </axes>

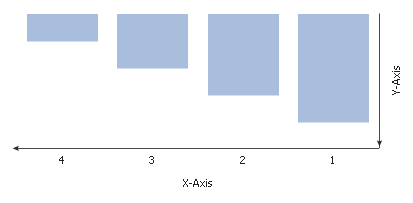

	XML Syntax XML Code 01 <axes> 02   <y_axis position="Opposite"> 03     <scale inverted="True" /> 04   </y_axis> 05   <x_axis position="Normal"> 06     <scale inverted="True" /> 07   </x_axis> 08 </axes> <axes> <y_axis position="Opposite"> <scale inverted="True" /> </y_axis> <x_axis position="Normal"> <scale inverted="True" /> </x_axis> </axes>

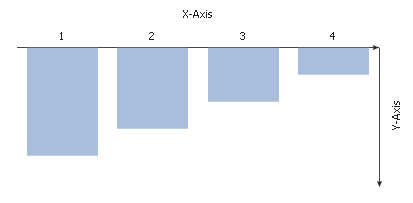

	XML Syntax XML Code 01 <axes> 02   <y_axis position="Opposite"> 03     <scale inverted="True" /> 04   </y_axis> 05   <x_axis position="Opposite"> 06     <scale inverted="False" /> 07   </x_axis> 08 </axes> <axes> <y_axis position="Opposite"> <scale inverted="True" /> </y_axis> <x_axis position="Opposite"> <scale inverted="False" /> </x_axis> </axes>

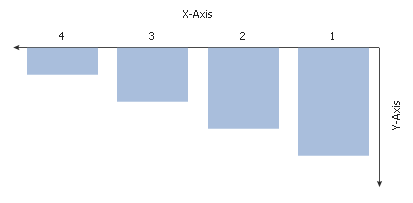

	XML Syntax XML Code 01 <axes> 02   <y_axis position="Opposite"> 03     <scale inverted="True" /> 04   </y_axis> 05   <x_axis position="Opposite"> 06     <scale inverted="True" /> 07   </x_axis> 08 </axes> <axes> <y_axis position="Opposite"> <scale inverted="True" /> </y_axis> <x_axis position="Opposite"> <scale inverted="True" /> </x_axis> </axes>

CategorizedHorizontal, CategorizedBySeriesHorizontal

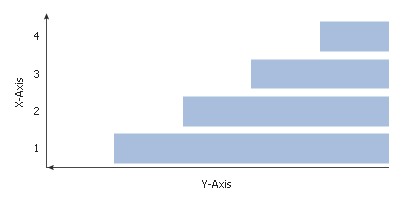

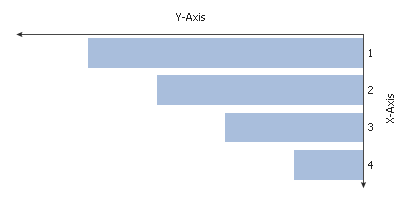

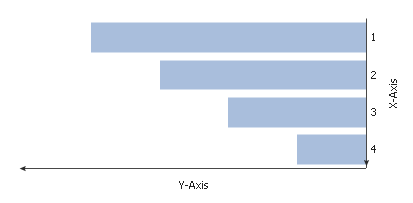

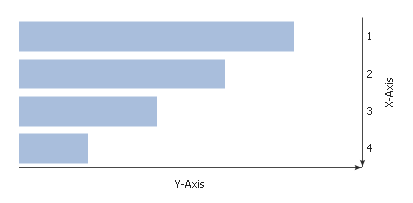

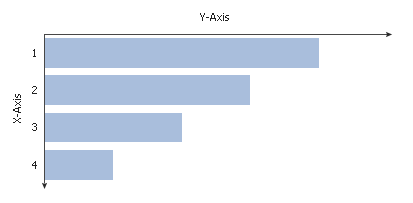

When <chart plot_type=""> is set to "CategorizedHorizontal" or "CategorizedBySeriesHorizontal" positioning and inverting settings work as shown in samples below:

Preview	XML Settings
	XML Syntax XML Code 01 <axes> 02   <y_axis position="Normal"> 03     <scale inverted="False" /> 04   </y_axis> 05   <x_axis position="Normal"> 06     <scale inverted="False" /> 07   </x_axis> 08 </axes> <axes> <y_axis position="Normal"> <scale inverted="False" /> </y_axis> <x_axis position="Normal"> <scale inverted="False" /> </x_axis> </axes>
	XML Syntax XML Code 01 <axes> 02   <y_axis position="Normal"> 03     <scale inverted="False" /> 04   </y_axis> 05   <x_axis position="Normal"> 06     <scale inverted="True" /> 07   </x_axis> 08 </axes> <axes> <y_axis position="Normal"> <scale inverted="False" /> </y_axis> <x_axis position="Normal"> <scale inverted="True" /> </x_axis> </axes>
	XML Syntax XML Code 01 <axes> 02   <y_axis position="Normal"> 03     <scale inverted="False" /> 04   </y_axis> 05   <x_axis position="Opposite"> 06     <scale inverted="False" /> 07   </x_axis> 08 </axes> <axes> <y_axis position="Normal"> <scale inverted="False" /> </y_axis> <x_axis position="Opposite"> <scale inverted="False" /> </x_axis> </axes>
	XML Syntax XML Code 01 <axes> 02   <y_axis position="Normal"> 03     <scale inverted="False" /> 04   </y_axis> 05   <x_axis position="Opposite"> 06     <scale inverted="True" /> 07   </x_axis> 08 </axes> <axes> <y_axis position="Normal"> <scale inverted="False" /> </y_axis> <x_axis position="Opposite"> <scale inverted="True" /> </x_axis> </axes>
	XML Syntax XML Code 01 <axes> 02   <y_axis position="Normal"> 03     <scale inverted="True" /> 04   </y_axis> 05   <x_axis position="Normal"> 06     <scale inverted="False" /> 07   </x_axis> 08 </axes> <axes> <y_axis position="Normal"> <scale inverted="True" /> </y_axis> <x_axis position="Normal"> <scale inverted="False" /> </x_axis> </axes>
	XML Syntax XML Code 01 <axes> 02   <y_axis position="Normal"> 03     <scale inverted="True" /> 04   </y_axis> 05   <x_axis position="Normal"> 06     <scale inverted="True" /> 07   </x_axis> 08 </axes> <axes> <y_axis position="Normal"> <scale inverted="True" /> </y_axis> <x_axis position="Normal"> <scale inverted="True" /> </x_axis> </axes>
	XML Syntax XML Code 01 <axes> 02   <y_axis position="Normal"> 03     <scale inverted="True" /> 04   </y_axis> 05   <x_axis position="Opposite"> 06     <scale inverted="False" /> 07   </x_axis> 08 </axes> <axes> <y_axis position="Normal"> <scale inverted="True" /> </y_axis> <x_axis position="Opposite"> <scale inverted="False" /> </x_axis> </axes>
	XML Syntax XML Code 01 <axes> 02   <y_axis position="Normal"> 03     <scale inverted="True" /> 04   </y_axis> 05   <x_axis position="Opposite"> 06     <scale inverted="True" /> 07   </x_axis> 08 </axes> <axes> <y_axis position="Normal"> <scale inverted="True" /> </y_axis> <x_axis position="Opposite"> <scale inverted="True" /> </x_axis> </axes>
	XML Syntax XML Code 01 <axes> 02   <y_axis position="Opposite"> 03     <scale inverted="False" /> 04   </y_axis> 05   <x_axis position="Normal"> 06     <scale inverted="False" /> 07   </x_axis> 08 </axes> <axes> <y_axis position="Opposite"> <scale inverted="False" /> </y_axis> <x_axis position="Normal"> <scale inverted="False" /> </x_axis> </axes>
	XML Syntax XML Code 01 <axes> 02   <y_axis position="Opposite"> 03     <scale inverted="False" /> 04   </y_axis> 05   <x_axis position="Normal"> 06     <scale inverted="True" /> 07   </x_axis> 08 </axes> <axes> <y_axis position="Opposite"> <scale inverted="False" /> </y_axis> <x_axis position="Normal"> <scale inverted="True" /> </x_axis> </axes>
	XML Syntax XML Code 01 <axes> 02   <y_axis position="Opposite"> 03     <scale inverted="False" /> 04   </y_axis> 05   <x_axis position="Opposite"> 06     <scale inverted="False" /> 07   </x_axis> 08 </axes> <axes> <y_axis position="Opposite"> <scale inverted="False" /> </y_axis> <x_axis position="Opposite"> <scale inverted="False" /> </x_axis> </axes>
	XML Syntax XML Code 01 <axes> 02   <y_axis position="Opposite"> 03     <scale inverted="False" /> 04   </y_axis> 05   <x_axis position="Opposite"> 06     <scale inverted="True" /> 07   </x_axis> 08 </axes> <axes> <y_axis position="Opposite"> <scale inverted="False" /> </y_axis> <x_axis position="Opposite"> <scale inverted="True" /> </x_axis> </axes>
	XML Syntax XML Code 01 <axes> 02   <y_axis position="Opposite"> 03     <scale inverted="True" /> 04   </y_axis> 05   <x_axis position="Normal"> 06     <scale inverted="False" /> 07   </x_axis> 08 </axes> <axes> <y_axis position="Opposite"> <scale inverted="True" /> </y_axis> <x_axis position="Normal"> <scale inverted="False" /> </x_axis> </axes>
	XML Syntax XML Code 01 <axes> 02   <y_axis position="Opposite"> 03     <scale inverted="True" /> 04   </y_axis> 05   <x_axis position="Normal"> 06     <scale inverted="True" /> 07   </x_axis> 08 </axes> <axes> <y_axis position="Opposite"> <scale inverted="True" /> </y_axis> <x_axis position="Normal"> <scale inverted="True" /> </x_axis> </axes>
	XML Syntax XML Code 01 <axes> 02   <y_axis position="Opposite"> 03     <scale inverted="True" /> 04   </y_axis> 05   <x_axis position="Opposite"> 06     <scale inverted="False" /> 07   </x_axis> 08 </axes> <axes> <y_axis position="Opposite"> <scale inverted="True" /> </y_axis> <x_axis position="Opposite"> <scale inverted="False" /> </x_axis> </axes>
	XML Syntax XML Code 01 <axes> 02   <y_axis position="Opposite"> 03     <scale inverted="True" /> 04   </y_axis> 05   <x_axis position="Opposite"> 06     <scale inverted="True" /> 07   </x_axis> 08 </axes> <axes> <y_axis position="Opposite"> <scale inverted="True" /> </y_axis> <x_axis position="Opposite"> <scale inverted="True" /> </x_axis> </axes>
